Description

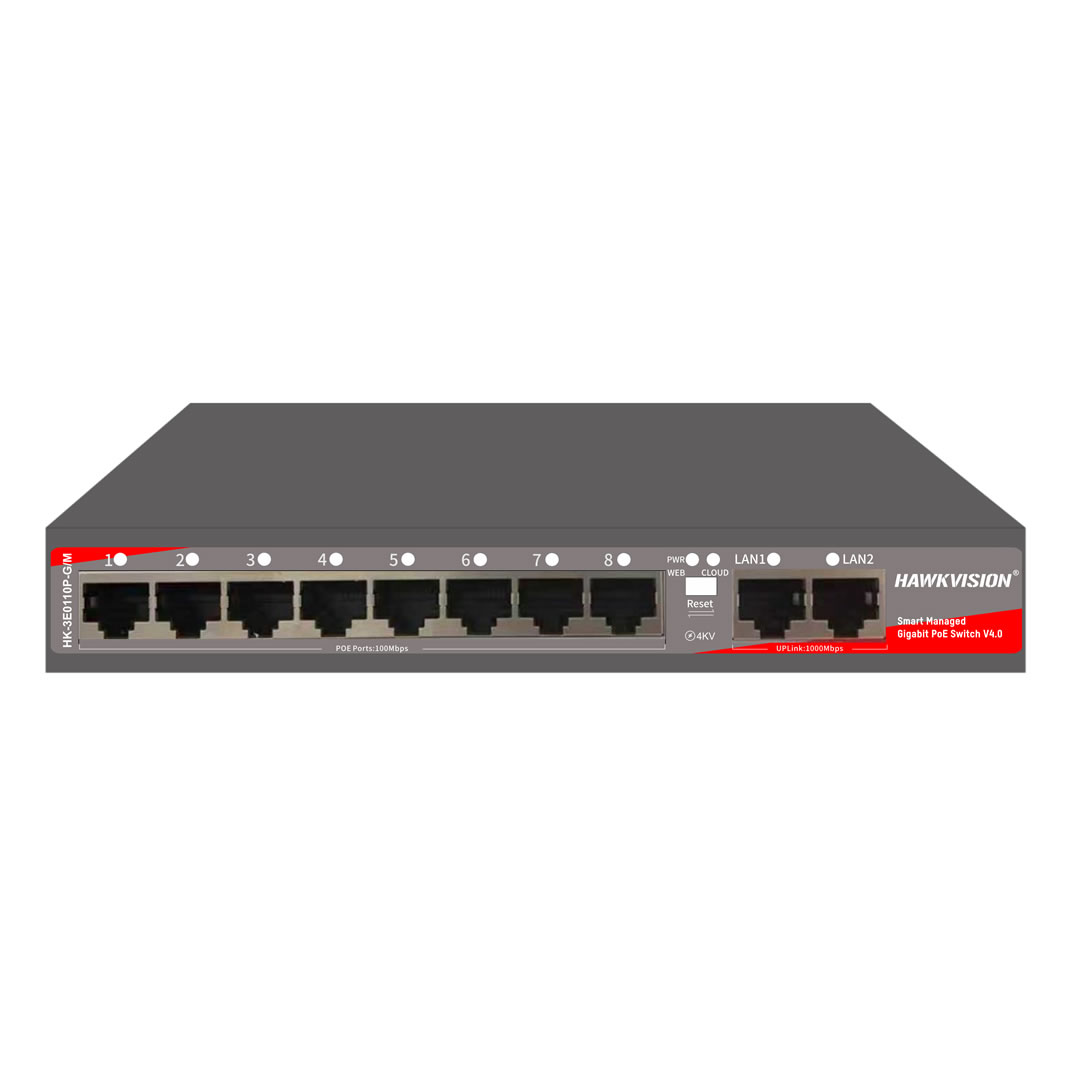

The HAWKVISION Giga Easy Series Cloud Managed PoE Switch is a high-performance, 8-port High Speed PoE switch, designed for powering IP-based CCTV systems. With 90W PoE budget and support for up to 30W per port, it powers high-powered devices such as IP cameras, wireless access points, and VoIP phones. This switch includes 4kV common mode surge protection, 2kV differential mode surge protection, and Watchdog functionality for enhanced network reliability. Additionally, it offers 2 Gigabit RJ45 uplink ports, and VLAN support to optimize surveillance and security networks. It also supports extended PoE transmission distances up to 250 meters.
Datasheet Hawkvision Giga Ready Managed PoE Switch Series HK-3E0110P-G-M
Key Features
- Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards
- Support 802.3af/at standard protocol
- Support 802.1Q VLAN, MTU-VLAN, suitable for a variety of networking business needs
- Second Gear Pull: WEB + CLOUD (default WEB)
- Support port QOS, port traffic restriction
- Support “HAWKVISION” App to remotely manage switch, support local web management
- Support DHCP snooping, port mirroring, port management and other functions
- Support broadcast and multicast storm suppression
- Over current overload short circuit protection, eliminate hidden dangers, power supply safety
- Cloud network management: visual remote management, on-site problems, remote resolution
- PoE 8 x 100M PoE RJ45 ports
- Uplink 2 x 1000M RJ45 ports
- All ports support Auto Flip (Auto MDI/MDI-X) function
- Support IEEE802.3X full duplex flow control and Back pressure half duplex flow control
- MAC address binding supports all cascaded ports + POE ports only support two
- Full metal shell, the whole machine is fully loaded with 90W
- Intelligently detect power supply, and do not burn out non-powered equipment
- Plug and Play
- External Power Supply, UK Plug
- Model: HK-3E0110P-G/M
