| Model |
HK-7104-K1/4P |
| Brand: |
HAWKVISION |
| Product: |
Hawkvision 4K 4ch Smart PoE NVR |
| Country of Origin: |
United Kingdom |
| System Structure |
Embedded Linux design, pure hardware decoding, watchdog, HDD storage, HDMI HD display, IP network video access |
| Video Split Mode |
1 / 2 / 4 split display |
| Decoding Capability |
4K / 1080P / 4MP + 5×D1 / 4MP + 7×D1 |
| Incoming Bandwidth |
80 Mbps |
| Video Output |
1 HDMI, 1 VGA |
| HDMI Resolution |
3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×800, 1024×768 |
| Preview Support |
IMS client preview, mobile APP fast preview |
| Screen Display |
1/2/4/6/8/9 split real-time preview |
| Recording Resolution |
720P / 960P / 1080P / 3MP / 4MP / 5MP / 4K |
| Video Compression |
Smart265 / H.265 / H.264 |
| Playback |
4CH synchronous playback (1×4K) |
| Remote Playback |
IMS client supports up to 4CH remote playback |
| Audio |
G.711 standard; HDMI audio output; 2PIN audio input; 3PIN audio output |
| Storage |
1 SATA HDD, supports up to 16TB |
| Recording Modes |
Scheduled, alarm, and combined recording |
| Alarm Events |
Motion detection, human detection, line-crossing, vehicle retrograde, staff absence, loitering, area intrusion, illegal parking |
| Backup |
USB storage backup (USB drive / portable HDD) |
| User Management |
Supports up to 32 local users |
| Network Port |
1× RJ45 10/100Mbps adaptive Ethernet |
| Network Protocols |
TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP, GB28181 |
| PoE Ports |
4× 10/100Mbps adaptive ports |
| PoE Power |
IEEE802.3af: 15.4W / IEEE802.3at: 30W |
| USB Ports |
2× USB2.0 (rear) |
| USB Functions |
Mouse, firmware upgrade, import/export |
| Alarm Port |
N/A |
| Front Panel Indicators |
Power, Recording, Network |
| Buzzer Alarm |
Supported |
| Remote Service |
Preview, recording, forwarding, alarm linkage, remote monitoring |
| Cloud Service |
P2P cloud supported |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10% to 90% |
| Power Supply |
DC 52V / 2.3A |
| Power Consumption |
≤100W |

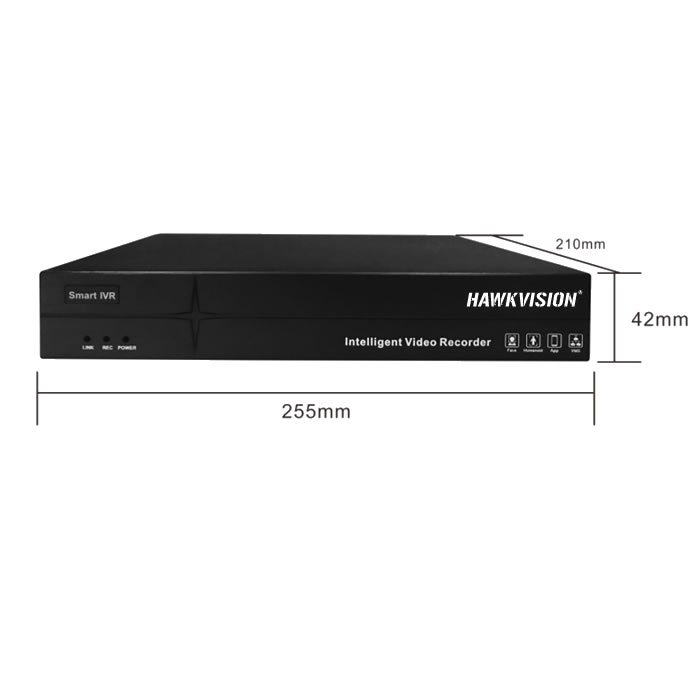

| Dimensions |
210 × 255 × 42 mm (W × L × H) |
| Gross Weight |
1400gms |
| Package Contents: |
NVR, AC Power Cord, HDD Power and Data Cable, Screw for HDD |
| Certifications: |
ISO14001, CE, RoHS compliant |
| Country of Manufacture: |
China |
