Description

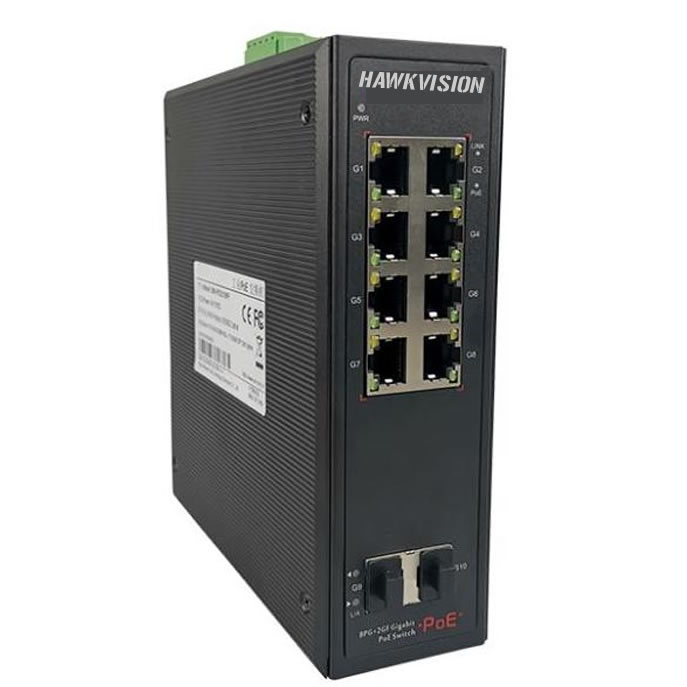

The HAWKVISION HK-IPS0802F is an unmanaged industrial PoE fiber switch designed for robust, high-density deployments. It features 8 × 10/100/1000M RJ45 PoE ports and 2 × 1000M uplink SFP fiber ports, with ports 1–8 supporting IEEE 802.3af/at PoE, delivering up to 30W per port.

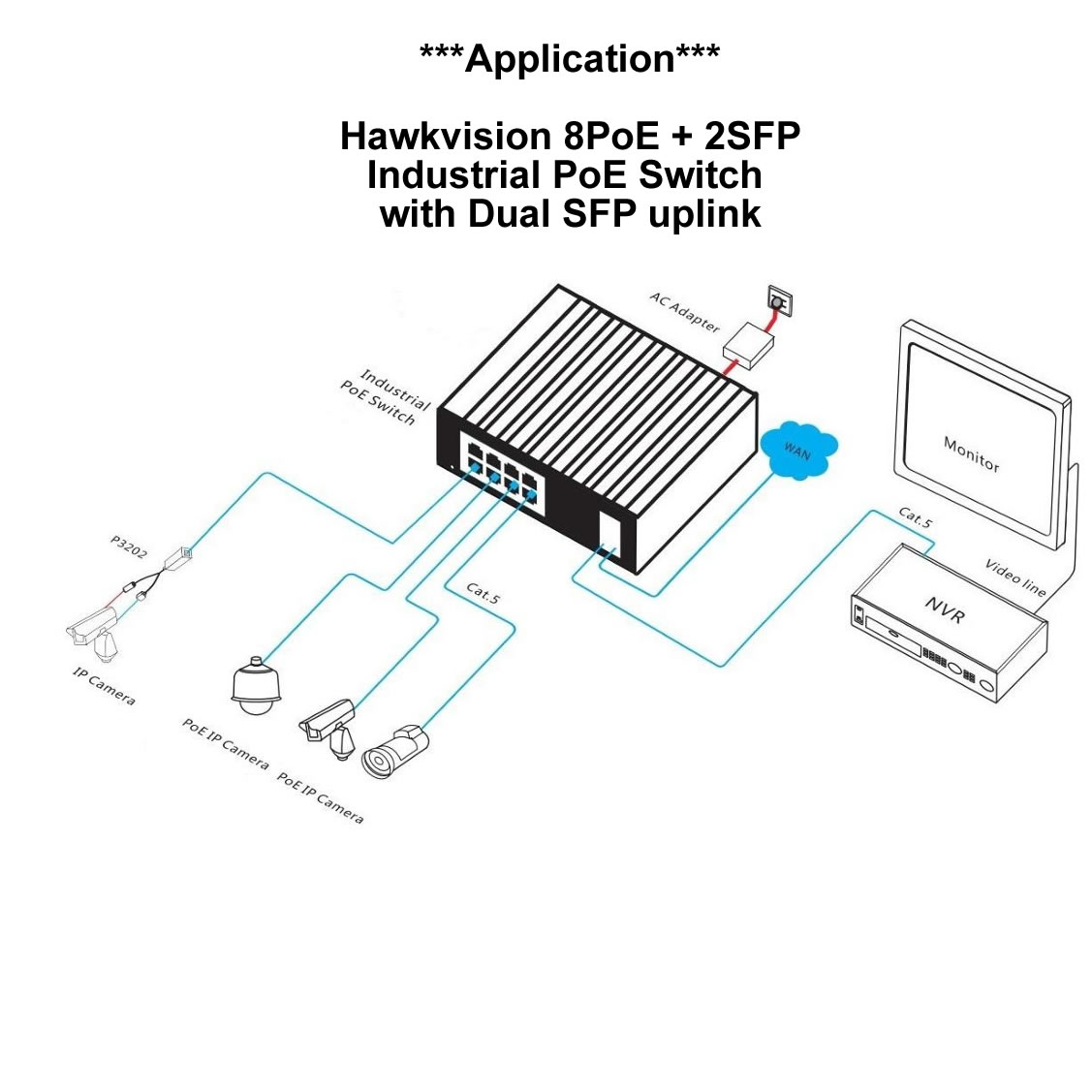

The switch supports dual DC power input for redundancy, DIN rail mounting for easy industrial installation, and lightning/surge protection up to 6 kV (8/20 µs) to safeguard connected devices in harsh electrical environments. It automatically detects PoE devices, delivering both data and power over a single Ethernet cable, making it ideal for powering wireless access points, IP cameras, VoIP phones, and industrial sensors.
Engineered for harsh industrial environments, the HK-IPS0802F is suitable for intelligent transportation, rail transit, power systems, mining, metallurgy, renewable energy, and construction applications. Its plug-and-play, unmanaged design provides a cost-effective, reliable, and easy-to-deploy networking solution.
Datasheet Hawkvision Industrial Full Giga PoE Switch with SFP Uplinks – HK-IPS0802F
Key Features
- Gigabit Access with Uplink SFP Ports, equipped with dual gigabit SFP fiber uplink ports, supporting high-bandwidth and long-distance data transmission.
- Compatible with a variety of SFP modules, enabling flexible cascading and chain networking.
- Smart PoE Power Supply, Fully compliant with the IEEE 802.3af/at PoE standards, automatically identifying PoE-powered devices while ensuring non-PoE devices are not damaged.
- Provides 8 × 10/100/1000Base-T RJ45 PoE ports, ideal for security monitoring, video conferencing, wireless coverage, and other PoE applications.
- PoE priority mechanism ensures that high-priority ports receive power first when the total power budget is limited, preventing overload and enhancing operational stability.
- Stable and Reliable Industrial-Grade Design, Meets major safety and quality certifications: CCC, CE, FCC, and RoHS.
- User-friendly LED indicators display the status of power, link, and PoE, simplifying monitoring and maintenance.
- Features low power consumption, a fanless aluminum housing, and excellent heat dissipation to ensure long-term stable operation in demanding environments.
- Lightning/surge protection up to 6 kV (8/20 µs) to safeguard connected devices in harsh electrical environments.
Teddy –
Dual power option is good choice, DIN rail supply and external dc power adapter
Charlie –
Full gigabit PoE ports providing up to 30W each, this switch powers multiple devices simultaneously while maintaining reliability in harsh environments.
Carlos –
Best industrial switch so far we used for many projects great performance, we deployed in across spain, not a single complain so far
Ted –
Great product! After installing this industrial switch with 6 kV (8/20 µs) lightning protection in our factory, all our frequent switch failures stopped. everything is working flawlessly. Highly recommended.
Charlie –
Perfect quality and flaw less performance, real low price
Jude –
Our factory used to face repeated poe switch failures, especially during lightning seasons. On our engineer’s advice, we installed this industrial switch with surge protection rated up to 6 kV (8/20 µs). It’s been one year now, and we haven’t had a single issue since. This protection has proven to be a real and effective solution for safeguarding our equipment.
Oscar –
Aggressively low price but high end industrial grade
Daniel –
Industrial-grade reliability, Rugged & Reliable with 6kv lightning protection, plug and play
Diego –
Hola, soy Diego de España, he estado usando este interruptor durante más de un año en un entorno industrial a temperaturas muy altas y funciona perfectamente hasta la fecha.
Liam –
This industrial PoE switch delivers excellent performance so far. It offers gigabit access with dual gigabit SFP uplink ports, ensuring stable, high-bandwidth, we using for long-distance data transmission. The build quality is solid and no lagging, no dis connectivity
Oliver –
we like the 5-year warranty with lifelong maintenance support
Tech-Guro –
The Hawkvision HK-IPS0802 is built to withstand extreme conditions, with an operating temperature range of –40°C to +80°C and storage tolerance up to –40°C to +85°C, making it highly reliable for industrial environments, outdoor installations, and harsh climate deployments.
Julia –
good performance, economical price
